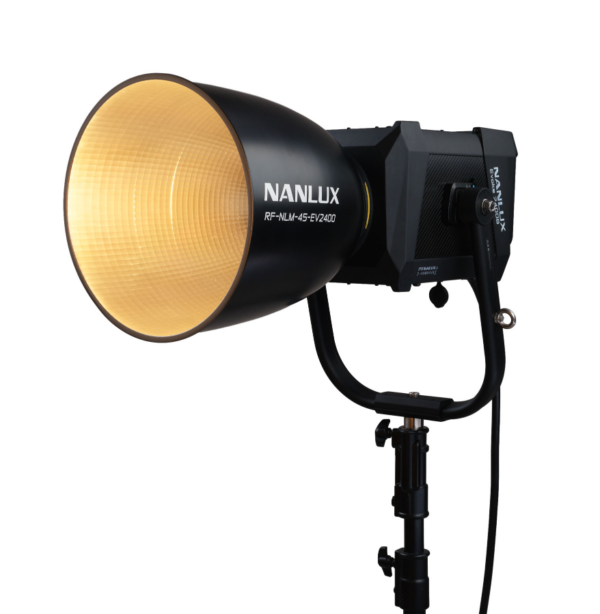

Evoke 2400B – Nanlux

604,500

The Nanlux Evoke 2400B is a flagship high-output bi-color LED spotlight engineered for large-scale film productions, broadcast environments, and professional studio applications. Combining exceptional brightness, precise colour accuracy, advanced wireless control, and weather-resistant construction, the Evoke 2400B delivers cinematic lighting performance for demanding production workflows.

Key Features

  • Ultra-powerful 2400W bi-color LED spotlight
  • Wide CCT range from 2700K–6500K
  • High CRI and TLCI colour accuracy
  • Advanced Green/Magenta adjustment
  • Flicker-free output for high-speed cinematography
  • IP55 weather-resistant construction
  • Multiple dimming curves for cinematic control
  • NL mount compatibility
  • Professional wireless and wired control systems
  • Built for studio and outdoor production use

Available on backorder

Built for professional cinematography and high-end production environments, the Nanlux Evoke 2400B delivers the power and punch of traditional large-format fixtures while maintaining the flexibility, efficiency, and control advantages of modern LED technology.

Its advanced bi-colour light engine enables smooth adjustment between warm tungsten and daylight colour temperatures without sacrificing output consistency or colour accuracy. Designed for both studio and location work, the fixture features robust construction, intelligent cooling, and IP-rated protection for reliable operation in challenging shooting environments.

The Evoke 2400B is ideal for productions requiring strong output, accurate skin tones, and seamless integration into professional lighting systems.

Color Accuracy & Performance

The Nanlux Evoke 2400B is engineered for high-end image reproduction with stable spectral output and precise colour consistency across the full CCT range.

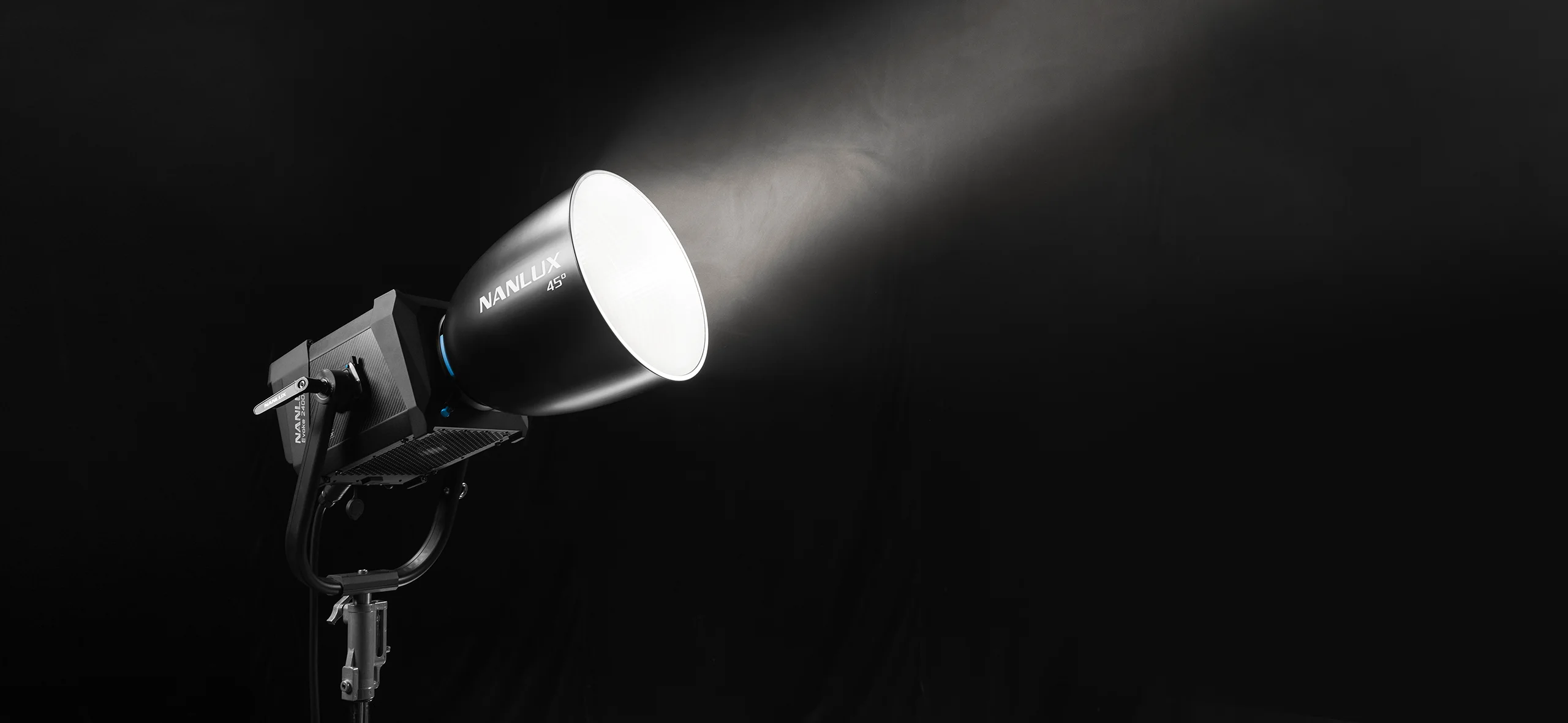

evoke 2400b

Performance Highlights

  • Accurate skin tone rendering
  • Stable colour reproduction during dimming
  • Consistent output across all colour temperatures
  • Advanced green/magenta tuning for mixed-light environments
  • Flicker-free performance for slow-motion and high frame-rate shooting

Its powerful output makes it suitable for:

  • Large-scale film production
  • Commercial shoots
  • Broadcast studios
  • Exterior night scenes
  • Virtual production stages
  • High-output soft lighting setups

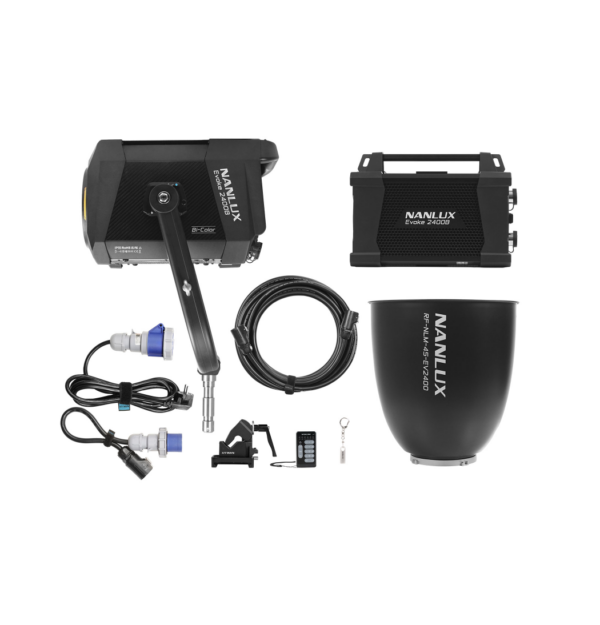

In the Box

  • Evoke 2400B Fixture ×1

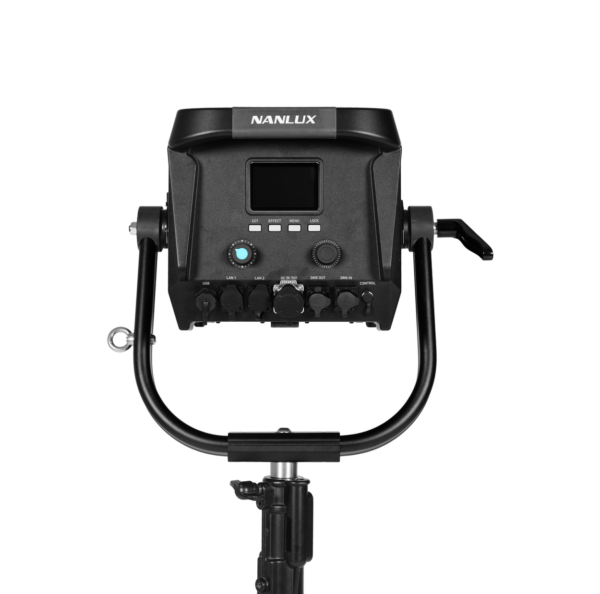

  • Control Unit ×1

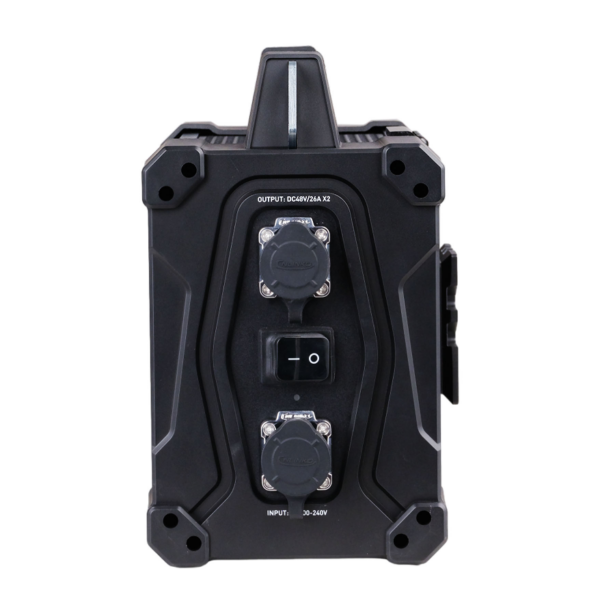

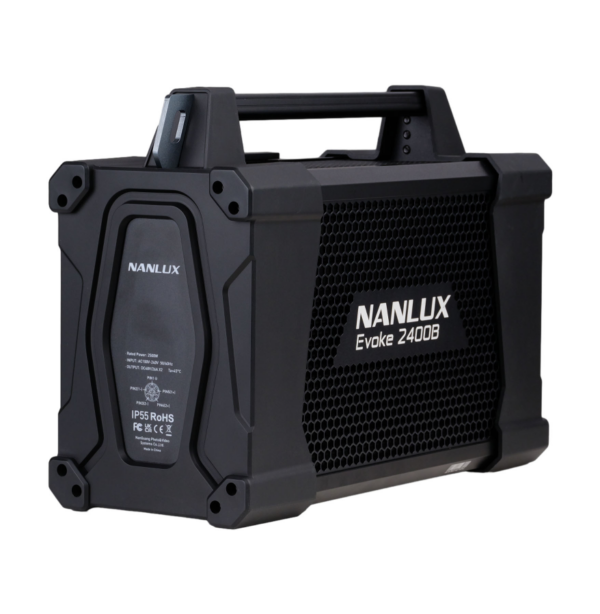

  • Power Supply Unit ×1
  • 45° Reflector ×1
  • Head Cable ×1
  • Power Cable ×1
  • Carrying Case ×1
  • User Documentation ×1

Photometrics (Lux / Fc)

Light Only

Distance 3m 5m 7m 9m
2700K 7910 lux / 735 fc 3162 lux / 294 fc 1686 lux / 157 fc 1054 lux / 98 fc
3200K 8732 lux / 811 fc 3478 lux / 323 fc 1848 lux / 172 fc 1152 lux / 107 fc
4300K 9671 lux / 898 fc 3858 lux / 358 fc 2071 lux / 192 fc 1263 lux / 117 fc
5600K 9584 lux / 890 fc 3801 lux / 353 fc 2028 lux / 188 fc 1266 lux / 118 fc
6500K 9745 lux / 905 fc 3873 lux / 360 fc 2099 lux / 195 fc 1275 lux / 118 fc

With 45° Reflector

Distance 3m 5m 7m 9m
2700K 32140 lux / 2986 fc 10770 lux / 1001 fc 5604 lux / 521 fc 3412 lux / 317 fc
3200K 36710 lux / 3410 fc 12270 lux / 1140 fc 6381 lux / 593 fc 3872 lux / 360 fc
4300K 41800 lux / 3883 fc 14030 lux / 1303 fc 7242 lux / 673 fc 4381 lux / 407 fc
5600K 41910 lux / 3893 fc 14070 lux / 1307 fc 7254 lux / 674 fc 4401 lux / 409 fc
6500K 36090 lux / 3353 fc 12160 lux / 1130 fc 6276 lux / 583 fc 3839 lux / 357 fc

With 30° Reflector

Distance 3m 5m 7m 9m
2700K 78560 lux / 7298 fc 24690 lux / 2294 fc 12250 lux / 1138 fc 7311 lux / 679 fc
3200K 89160 lux / 8283 fc 28020 lux / 2603 fc 13900 lux / 1291 fc 8305 lux / 772 fc
4300K 103000 lux / 9596 fc 31410 lux / 2918 fc 15640 lux / 1453 fc 9330 lux / 867 fc
5600K 104000 lux / 9662 fc 31610 lux / 2937 fc 15740 lux / 1462 fc 9369 lux / 870 fc
6500K 83970 lux / 7801 fc 26320 lux / 2445 fc 13060 lux / 1213 fc 7791 lux / 724 fc

With 60° Reflector

Distance 3m 5m 7m 9m
2700K 20220 lux / 1878 fc 7169 lux / 666 fc 3760 lux / 349 fc 2322 lux / 216 fc
3200K 23010 lux / 2138 fc 8118 lux / 754 fc 4241 lux / 394 fc 2622 lux / 244 fc
4300K 25810 lux / 2398 fc 9145 lux / 850 fc 4776 lux / 444 fc 2956 lux / 275 fc
5600K 26000 lux / 2415 fc 9214 lux / 856 fc 4800 lux / 446 fc 2976 lux / 276 fc
6500K 21640 lux / 2010 fc 7685 lux / 714 fc 4005 lux / 372 fc 2482 lux / 231 fc
Rated Power

2400W

Input Voltage / Current

DC48V/26A × 2, AC100-240V 50/60Hz 26A Max

CCT

2700K – 6500K (G/M ±80)

CRI/TLCI

Average 96

TM-30 Rf

Average 95

TM-30 Rg

Average 100

SSI (3200K)

84

SSI (5600K)

74

TLCI

Average 97

IP Rating

IP55

Dimming

0–100% stepless, 0.1% increments
